Locating Pin Big Head Cone Angle Type Tolerance Selection Type Tapped Type Threaded Type Standard Type
| End Face Shape Of Installation Side : | Straight Rod Shape | Hardness : | Quenching Hardness 48 ~ 53 HRC |
| Import Side Face Shape : | None | Import Head Shapes : | Conical Shape |
| Shoulder : | Without Shouder Shape | Shape Picture Name : | Locating Pin Without Shoulder Big Head Cone Angle Type |
| Shape : | Big Head Shape | classfication : | Locating pin |
| Size Selection : | Tolerance selective type | Surface Treatment : | None |
| Material : | SUS440C | Import Surface Shapes : | Round/Multi-Prismatic |

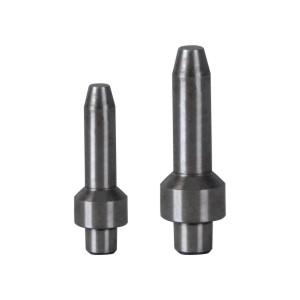

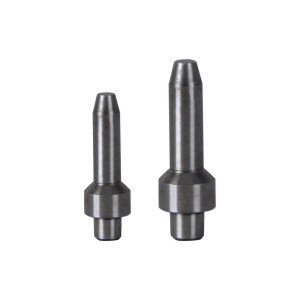

Locating Pin Big Head Cone Angle Type Second-Order Standard Type
| End Face Shape Of Installation Side : | Straight Rod Shape | Hardness : | Quenching Hardness 58 ~ 61 HRC |
| Import Side Face Shape : | None | Shoulder : | Without Shouder Shape |
| Import Head Shapes : | Conical Shape | Shape Picture Name : | Two-Stage Locating Pin |
| Tolerance Grade : | Dm6 | Shape : | Big Head Shape |
| classfication : | Two-Stage Locating Pin | Surface Treatment : | None |
| Import Surface Shapes : | Round | Material : | Sks3 |
Locating Pin Big Head Cone Angle Type Second Order Tapped Type
| End Face Shape Of Installation Side : | Tapped Type | Import Side Face Shape : | None |
| Hardness : | Quenching Hardness 58 ~ 61 HRC | Import Head Shapes : | Conical Shape |
| Shoulder : | Without Shouder Shape | Shape Picture Name : | Two-Stage Locating Pin |
| Shape : | Big Head Shape | Tolerance Grade : | Dg6 |
| classfication : | Two-Stage Locating Pin | Surface Treatment : | None |
| Material : | Sks3 | Import Surface Shapes : | Round |

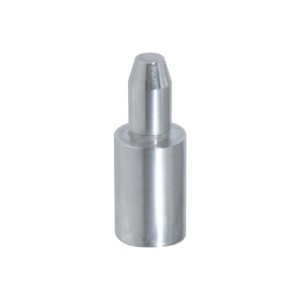

Locating Pin Taper Angle Tapped Type
| End Face Shape Of Installation Side : | Tapped Type | Hardness : | Quenching Hardness 58 ~ 61 HRC Coating Hardness 850Hv～ ~ |
| Import Side Face Shape : | None | Shoulder : | Without Shouder Shape |
| Import Head Shapes : | Conical Shape | Shape Picture Name : | Locating Pin Without Shoulder Small Head Cone Angle Type |
| Shape : | Small Head Shape | classfication : | Locating pin |
| Size Selection : | P.L.B Size Configuration Type | Surface Treatment : | Hard Chromium Plating With Thickness Of 3 ~ 5 Μ M |
| Import Surface Shapes : | Round/Multi-Prismatic | Material : | Sks3 |
Locating Pin Bolt Fixed Type H Size Fixed Type /H Size Configuration Type
| End Face Shape Of Installation Side : | Straight Rod Shape | Hardness : | Quenching Hardness 48 ~ 53 HRC |
| Import Side Face Shape : | Countersunk Fixed Type | Import Head Shapes : | Flat Head Shape |
| Shoulder : | Without Shouder Shape | Shape Picture Name : | Straight Rod Locating Pin Flat-Headed |
| Shape : | Straight Rod Shape | classfication : | Locating pin |
| Size Selection : | H Size Fixed Type | Surface Treatment : | None |
| Material : | SUS440C | Import Surface Shapes : | Round |

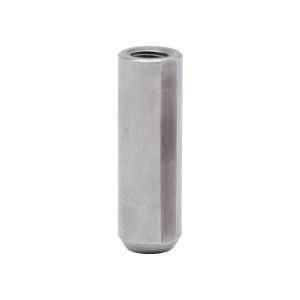

Locating Pin With Vent Hole Type Tapped Type/Threaded Type
| End Face Shape Of Installation Side : | Tapped Type | Hardness : | None |
| Import Side Face Shape : | None | Import Head Shapes : | Flat Head Shape |
| Shoulder : | Without Shouder Shape | Shape Picture Name : | Straight Rod Locating Pin With Thorugh Hole |
| Shape : | Straight Rod With Through Hole | classfication : | Locating pin |
| Surface Treatment : | None | Material : | SUS304 |
| Import Surface Shapes : | Round |

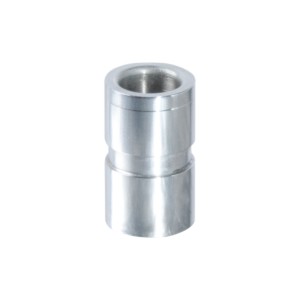

Bushing For Locating Pin Anti-Falling Type Without Shoulder Type
| Hardness : | 48～53HRC/54～58HRC | Shoulder : | Without Shouder Shape |
| Shape Picture Name : | Bushing For Locating Pin Anti-Falling | Tolerance Grade : | Dm6/Dp6 |
| Type : | Anti-Separtion Type | classfication : | Bushing For Locating Pin |
| Suitable Locating Pin Shape : | Circular form | Surface Treatment : | None/Electroless Nickel Plating |
| Material : | SUS440C/SKS93 |

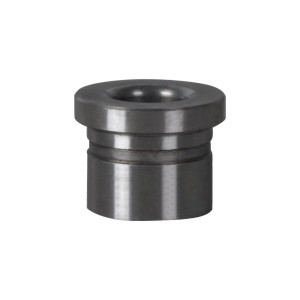

Bushing For Locating Pin Anti-Falling Shoulder Type
| Hardness : | 48～53HRC/54～58HRC | Shoulder : | With Shoulder Shape |
| Shape Picture Name : | Bushing For Locating Pin Anti-Falling | Tolerance Grade : | Dm6/Dp6 |
| classfication : | Bushing For Locating Pin | Type : | Anti-Separtion Type |
| Suitable Locating Pin Shape : | Circular form | Surface Treatment : | None |
| Material : | SUS440C/SKS93 |

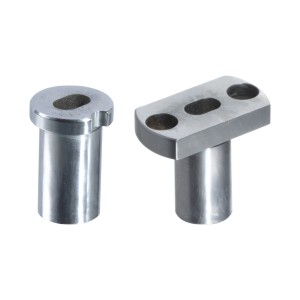

Bushing For Locating Pin Long Round Hole Type Shoulder Type/Opposite Flange Type
| Hardness : | 54～58HRC | Shoulder : | Shoulder Type With Positioning Hole/Opposite Flange Shoulder Type |
| Shape Picture Name : | Locating Pin Bushing Long Round Hole Type | Tolerance Grade : | Dm6/Dg6/Dp6 |
| Suitable Locating Pin Shape : | Waist Pass | Type : | Oil Tank-Free Type |
| classfication : | Bushing For Locating Pin | Surface Treatment : | None/Electroless Nickel Plating |
| Material : | Sks3 |
Bushing For Locating Pin Anti-Dropping Type Notch
| Hardness : | 56～60HRC | Shoulder : | Shoulder Type With Incision |
| Shape Picture Name : | Bushing For Locating Pin Anti-Falling | Type : | Anti-Separtion Type |
| Suitable Locating Pin Shape : | Circular form | classfication : | Bushing For Locating Pin |
| Material : | SKS93 |

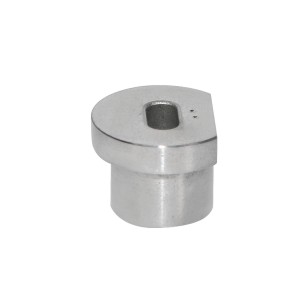

Bushing For Locating Pin Long Round Hole Type Positioning Stop Type/Single Side Cutting Type
| Hardness : | 48～58HRC | Shoulder : | With Shoulder Shape |
| Wall Thickness : | Standard type | Shape Picture Name : | Locating Pin Bushing Long Round Hole Type |
| Tolerance Grade : | P（+0.03/+0.01） | Suitable Locating Pin Shape : | Waist Pass |
| classfication : | Bushing For Locating Pin | Size Selection : | P.L Size Configuration Type |
| Surface Treatment : | None | Material : | SKS93 |

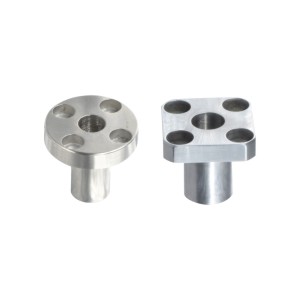

Bushing For Locating Pin Flange Type P Size Fixed Type
| Hardness : | Quenching Hardness 54 ~ 58 HRC | Shoulder : | Round Flange 4 Countersunk Shoulder Type/Opposite Flange Shoulder Type/Square Flange With Shoulder Type |
| Shape Picture Name : | Bushing For Locating Pin Flange Type | Suitable Locating Pin Shape : | Circular form |
| classfication : | Bushing For Locating Pin | Type : | Oil Tank-Free Type |
| Size Selection : | P Fixed Size Type | Surface Treatment : | None/Electroless Nickel Plating |
| Material : | Sks3 |
Bushing For Locating Pin Flange Type P Size Configuration Type
| Hardness : | Quenching Hardness 54 ~ 58 HRC | Shoulder : | Round Flange 4 Countersunk Shoulder Type/Square Flange With Shoulder Type/Opposite Flange Shoulder Type/Round Flange 3 Countersunk Shoulder Type |
| Shape Picture Name : | Bushing For Locating Pin Flange Type | Tolerance Grade : | Dg6 |
| classfication : | Bushing For Locating Pin | Type : | Oil Tank-Free Type |
| Suitable Locating Pin Shape : | Circular form | Size Selection : | P Size Configuration Type |
| Surface Treatment : | Blacked/None/Electroless Nickel Plating | Import Surface Shapes : | Round |
| Material : | SKS93 |

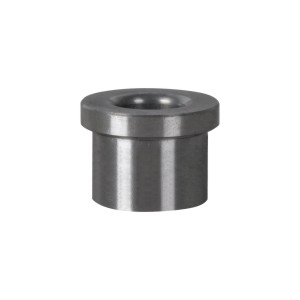

Bushing For Locating Pin Shoulder Type Standard Type
| Hardness : | 56HRC～ | Shoulder : | With Shoulder Shape |
| Shape Picture Name : | Bushing For Locating Pin With Oil Groove | Type : | With Oil Groove Type |
| classfication : | Bushing For Locating Pin | Suitable Locating Pin Shape : | Circular form |
| Surface Treatment : | None | Material : | SUJ2 |
Locating Pin Big Head Spherical Standard Type P Size Configuration Type
| End Face Shape Of Installation Side : | Straight Rod Shape | Import Side Face Shape : | None |
| Hardness : | Quenching Hardness 58 ~ 61 HRC | Shoulder : | Without Shouder Shape |
| Import Head Shapes : | Spherical Shape | Shape Picture Name : | Locating Pin Without Shoulder Big Head Spherical Type |
| Shape : | Big Head Shape | Tolerance Grade : | Dm6 |
| classfication : | Locating pin | Size Selection : | P.L.B Size Configuration Type |
| Surface Treatment : | None | Import Surface Shapes : | Round |
| Material : | Sks3 |
Locating Pin Big Head Spherical Head Tapped P Size Configuration Type
| End Face Shape Of Installation Side : | Tapped Type | Import Side Face Shape : | None |
| Hardness : | Quenching Hardness 58 ~ 61 HRC | Shoulder : | Without Shouder Shape |
| Import Head Shapes : | Spherical Shape | Shape Picture Name : | Locating Pin Without Shoulder Big Head Spherical Type |
| Shape : | Big Head Shape | classfication : | Locating pin |
| Size Selection : | P.L.B Size Configuration Type | Surface Treatment : | None |
| Material : | Sks3 | Import Surface Shapes : | Round/Multi-Prismatic |

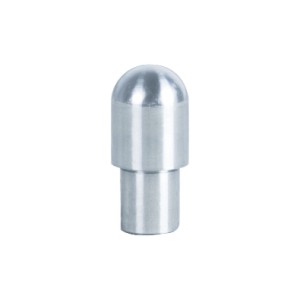

Locating Pin Big Head Spherical Tolerance Selection Standard Type/Tapped Type/Threaded Type
| End Face Shape Of Installation Side : | Straight Rod Shape | Import Side Face Shape : | None |
| Hardness : | Quenching Hardness 48 ~ 53 HRC | Import Head Shapes : | Spherical Shape |
| Shoulder : | Without Shouder Shape | Shape Picture Name : | Locating Pin Without Shoulder Big Head Spherical Type |
| Shape : | Big Head Shape | classfication : | Locating pin |
| Size Selection : | Tolerance selective type | Surface Treatment : | Polishing |
| Material : | SUS440C | Import Surface Shapes : | Multi-Prismatic/Round |

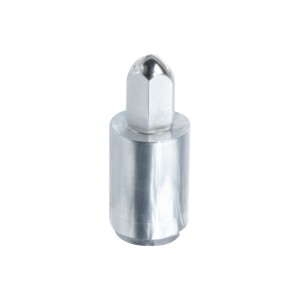

Locating Pin Small Head Spherical Tapped P Size Configuration Type
| End Face Shape Of Installation Side : | Tapped Type | Hardness : | Quenching Hardness 58 ~ 61 HRC |
| Import Side Face Shape : | None | Import Head Shapes : | Spherical Shape |
| Shoulder : | Without Shouder Shape | Shape Picture Name : | Locating Pin Without Shoulder Small Head Spherical Type |
| Shape : | Small Head Shape | classfication : | Locating pin |
| Size Selection : | P.L.B Size Configuration Type | Surface Treatment : | None |
| Material : | Sks3 | Import Surface Shapes : | Round/Multi-Prismatic |

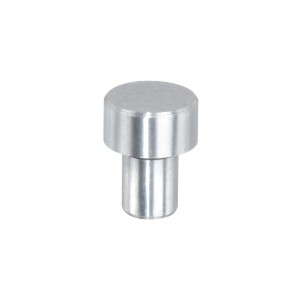

Locating Pin Big Head Flat Head Tapped P Size Configuration
| End Face Shape Of Installation Side : | Tapped Type | Import Side Face Shape : | None |
| Hardness : | Quenching Hardness 58 ~ 61 HRC | Import Head Shapes : | Flat Head Shape |
| Shoulder : | Without Shouder Shape | Shape Picture Name : | Locating Pin Without Shoulder Big Flat Head Type |
| Shape : | Big Head Shape | classfication : | Locating pin |
| Size Selection : | P.L.B Size Configuration Type | Surface Treatment : | None |
| Import Surface Shapes : | Round | Material : | Sks3 |
Locating Pin Big Head Flat Head Tolerance Selection Standard Type/Tapped Type/Threaded Type
| End Face Shape Of Installation Side : | Straight Rod Shape | Hardness : | Quenching Hardness 58 ~ 61 HRC Coating Hardness 850Hv～ ~ |
| Import Side Face Shape : | None | Shoulder : | Without Shouder Shape |
| Import Head Shapes : | Flat Head Shape | Shape Picture Name : | Locating Pin Without Shoulder Big Flat Head Type |
| Shape : | Big Head Shape | classfication : | Locating pin |
| Size Selection : | Tolerance selective type | Surface Treatment : | Hard Chromium Plating With Thickness Of 3 ~ 5 Μ M |
| Import Surface Shapes : | Round | Material : | Sks3 |

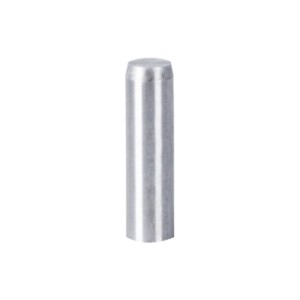

Locating Pin Straight Rod Spherical Type/Straight Rod Taper Standard Type/Tapped Type
| End Face Shape Of Installation Side : | Tapped Type/Straight Rod Shape | Hardness : | Quenching Hardness 58 ~ 61 HRC/None/Quenching Hardness 58 ~ 61 HRC Coating Hardness 850Hv～ ~/Quenching Hardness 48 ~ 53 HRC/Coating Hardness 850HV～ ~ |
| Import Side Face Shape : | None | Shoulder : | Without Shouder Shape |
| Import Head Shapes : | Conical Shape/Spherical Shape | Shape Picture Name : | Locating Pin Without Shoulder Straight Rod Tapered Type/Locating Pin Without Shoulder Straight Rod Spherical Shape |
| Shape : | Straight Rod Shape | classfication : | Locating pin |
| Surface Treatment : | None/Hard Chromium Plating With Thickness Of 3 ~ 5 Μ M/Hard Chrome Plating | Import Surface Shapes : | Round |
| Material : | Sks3/SUS304/SUS440C |
Locating Pin Straight Rod Small Diameter L Dimension Configuration·Tolerance Fixing Type/Tolerance Selection Type
| End Face Shape Of Installation Side : | Straight Rod Shape | Tolerance selection : | Fixed tolerance type |
| Import Side Face Shape : | None | Hardness : | Quenching Hardness 48 ~ 56 HRC/Quenching Hardness 48 ~ 53 HRC/None |
| Shoulder : | Without Shouder Shape | Import Head Shapes : | Flat Head Shape |
| Shape Picture Name : | Locating Pin Without Shoudler Small-Diameter | Shape : | Small Head And Small Diameter Straight Rod |
| classfication : | Locating pin | Size Selection : | L Size Configuration |
| Surface Treatment : | None | Material : | Sks3/SUS440C/SUS304 |
| Import Surface Shapes : | Round |

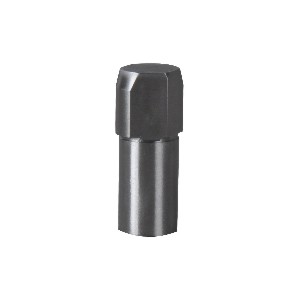

Locating Pin Big Head Type Front End Shape Selection Type Standard Type
| End Face Shape Of Installation Side : | Straight Rod Shape | Hardness : | None |
| Import Side Face Shape : | None | Import Head Shapes : | Front End Shape Selection Shape |
| Shoulder : | Without Shouder Shape | Shape Picture Name : | Locating Pin Big Head Front End Shape Selection Type |
| Shape : | Big Head Shape | Tolerance Grade : | Dm6 |
| classfication : | Locating pin | Surface Treatment : | None |
| Material : | SUS304 | Import Surface Shapes : | Multi-Prismatic |
Locating Pin Ordinary Level Fixture Front-End Shape Selection Type Shoulder Type Stop Screw Part Short Ring Groove Type/Cut Type
| End Face Shape Of Installation Side : | Ring Groove Shape | Accuracy Grade : | Regular level |
| Import Side Face Shape : | None | Hardness : | Quenching Hardness 33 ~ 38 HRC,Coating Hardness 850Hv～ |
| Import Head Shapes : | Front End Shape Selection Shape | Shoulder : | With Shoulder Shape |
| Shape Picture Name : | Locating Pin For Fixture Front End Shape Standard Type | classfication : | Locating Pin For Fixture |
| Surface Treatment : | Hard Chromium Plating With Thickness Of 3 ~ 5 Μ M | Import Surface Shapes : | Round |
| Material : | SCM435 |
Cone Angle R-Type Shoulder-Less Nut Fixing Type For Locating Pin
| End Face Shape Of Installation Side : | External Thread Shape | Hardness : | Quenching Hardness 33 ~ 38 HRC,Coating Hardness 850Hv～ |
| Import Side Face Shape : | None | Import Head Shapes : | Cone R Shape |
| Shoulder : | Without Shouder Shape | Shape Picture Name : | Locating Pin For Fixture Without Shoulder Cone Angle R-Shaped |
| classfication : | Locating Pin For Fixture | Surface Treatment : | Hard Chromium Plating With Thickness Of 3 ~ 5 Μ M |
| Material : | SCM435 | Import Surface Shapes : | Round |

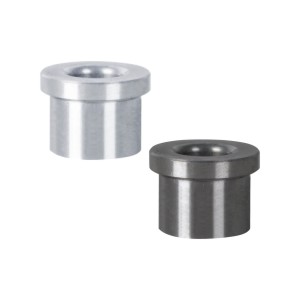

Bushing For Fixture With Shoulder L Dimension Configuration Standard
| Hardness : | 48～58HRC/48～53HRC | Wall Thickness : | Standard type |
| Shoulder : | With Shoulder Shape | Shape Picture Name : | Bushing For Fixture With Shoulder |
| Tolerance Grade : | Pm6/Pp6 | classfication : | Bushing For Fixture |
| Size Selection : | L Size Configuration | Surface Treatment : | Blacked/None |
| Import Surface Shapes : | Round | Material : | Sks3/SUS440C |
Bushing For Fixture Shoulder-Less Type/Shoulder-Bearing Type L Size Selection Type Standard Type/Thin Wall Type
| Hardness : | 58HRC～/56HRC～/48～53HRC | Wall Thickness : | Standard type/Thin Wall Type |
| Shoulder : | Without Shouder Shape/With Shoulder Shape | Shape Picture Name : | Bushing For Fixture Without Shoulder/Bushing For Fixture With Shoulder |
| Tolerance Grade : | Pp6/Pm6 | classfication : | Bushing For Fixture |
| Size Selection : | L Size Selection Type | Surface Treatment : | Electroless Nickel Plating/None |
| Import Surface Shapes : | Round | Material : | Sks3/SUJ2/SUS440C |
Bushing For Fixture Shoulder-Less Type/Shoulder-Bearing Type L Size Configuration Type Standard Type/Thin Wall Type
| Hardness : | 54～58HRC | Shoulder : | Without Shouder Shape/With Shoulder Shape |
| Wall Thickness : | Standard type/Thin Wall Type | Shape Picture Name : | Bushing For Fixture Without Shoulder/Bushing For Fixture With Shoulder |
| Tolerance Grade : | Dp6/Dm6 | classfication : | Bushing For Fixture |
| Size Selection : | L Size Configuration | Surface Treatment : | None/Electroless Nickel Plating |
| Material : | Sks3/SKS93 | Import Surface Shapes : | Round |
Bushing For Fixture Shoulder-Less Type/Shoulder Type (Copper Alloy)
| Wall Thickness : | Standard type | Shoulder : | Without Shouder Shape/With Shoulder Shape |
| Shape Picture Name : | Bushing For Fixture Without Shoulder/Bushing For Fixture With Shoulder | Tolerance Grade : | Pp6/Dp6/Dm6 |
| classfication : | Bushing For Fixture (Copper) | Size Selection : | L Size Selection Type |
| Material : | High-Strength Brass | Import Surface Shapes : | Round |
Screw-In Locating Pin Fully Thread Type
| Hardness : | Quenching Hardness 53 ~ 58 HRC ,Coating Hardness 850Hv～ ~/None | Shoulder : | Without Shouder Shape |
| Shape Picture Name : | Screw-In Locating Pin | classfication : | Screw-In Locating Pin |
| Surface Treatment : | Hard Chromium Plating With Thickness Of 3 ~ 5 Μ M/None | Material : | Sks3/SUS304 |
| Import Surface Shapes : | Round |
Locating Pin With Flange Flat Head Type Round Flange Type/Opposite Flange Type
| Hardness : | Quenching Hardness 58 ~ 61 HRC/Coating Hardness 850HV～ ~ | Shoulder : | Round Flange Type/Opposite Flange Type |
| Shape Picture Name : | Flanged Locating Pin | classfication : | Flanged Locating Pin |
| Surface Treatment : | None/Hard Chromium Plating With Thickness Of 3 ~ 5 Μ M | Import Surface Shapes : | Multi-Prismatic/Round |
| Material : | Sks3/SUS304 |
Marking Pin Hexagonal Hole Type
| End Face Shape Of Installation Side : | External Thread Shape | Import Side Face Shape : | Hexagonal pass type |
| Hardness : | None | Shape Picture Name : | Marking Pin |
| classfication : | Marking Pin | Surface Treatment : | None |
| Material : | SUS304 | Import Surface Shapes : | Round |
Feed Pin Shoulder-Less Standard Type/Tapped Type/Threaded
| End Face Shape Of Installation Side : | Straight Rod Shape | Hardness : | Coating Hardness 850HV～ ~ |
| Import Side Face Shape : | None | Shoulder : | Without Shouder Shape |
| Shape Picture Name : | Feed Pin | classfication : | Feed Pin |
| Surface Treatment : | Hard Chromium Plating,Coating Thickness 5 ~ 8 μm | Import Surface Shapes : | Round |
| Material : | SUS304 |
Locating Pin Big Head Cone Angle Type Round Type P Size Selection Type /P Size Configuration Type
| End Face Shape Of Installation Side : | Straight Rod Shape | Hardness : | Quenching Hardness 58 ~ 61 HRC |
| Import Side Face Shape : | None | Shoulder : | Without Shouder Shape |
| Import Head Shapes : | Conical Shape | Shape Picture Name : | Locating Pin Without Shoulder Big Head Cone Angle Type |
| Shape : | Big Head Shape | Tolerance Grade : | Dp6/Dm6 |
| classfication : | Locating pin | Size Selection : | P Size Selection Type |
| Surface Treatment : | None | Import Surface Shapes : | Round |
| Material : | Sks3 |
Locating Pin Big Head Cone Angle Type Polygonal P Size Selection /P Size Configuration
| End Face Shape Of Installation Side : | Straight Rod Shape | Import Side Face Shape : | None |
| Hardness : | Quenching Hardness 58 ~ 61 HRC | Shoulder : | Without Shouder Shape |
| Import Head Shapes : | Conical Shape | Shape Picture Name : | Locating Pin Without Shoulder Big Head Cone Angle Type |
| Tolerance Grade : | Dm6/Dp6 | Shape : | Big Head Shape |
| classfication : | Locating pin | Size Selection : | P Size Selection Type |
| Surface Treatment : | None | Material : | Sks3 |
| Import Surface Shapes : | Multi-Prismatic |
Locating Pin Big Head Cone Angle Type Tapped P Size Selection Type /P Size Configuration Type
| End Face Shape Of Installation Side : | Tapped Type | Import Side Face Shape : | None |
| Hardness : | Quenching Hardness 48 ~ 53 HRC/Quenching Hardness 58 ~ 61 HRC | Import Head Shapes : | Conical Shape |
| Shoulder : | Without Shouder Shape | Shape Picture Name : | Locating Pin Without Shoulder Big Head Cone Angle Type |
| Shape : | Big Head Shape | classfication : | Locating pin |
| Size Selection : | P.L.B Size Configuration Type | Surface Treatment : | None |
| Material : | SUS440C/Sks3 | Import Surface Shapes : | Multi-Prismatic/Round |
Locating Pin Big Head Cone Angle Type Threaded Inner Hexagon Socket Hole Type
| End Face Shape Of Installation Side : | External Thread Shape | Hardness : | None |
| Import Side Face Shape : | Hexagonal pass type | Import Head Shapes : | Conical Shape |
| Shoulder : | Without Shouder Shape | Shape Picture Name : | Locating Pin Without Shoulder Big Head Cone Angle Type |
| Shape : | Big Head Shape | classfication : | Locating pin |
| Size Selection : | P Size Configuration Type | Surface Treatment : | None |
| Material : | SUS304 | Import Surface Shapes : | Multi-Prismatic/Round |
