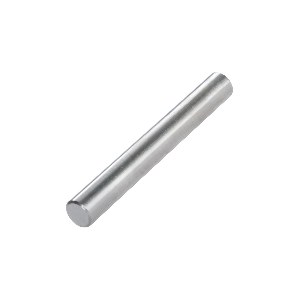

Rotating Shaft Straight Type Standard
| Type : | Staright type | D Tolerance : | g6/H7/H9 |
| Shape Picture Name : | Staright type | Shaft end processed : | Shaft end unprocessed |
| Shaft body processed : | Shaft body unprocessed | Surface Treatment : | Electroless Nickel Plating/None |
| Classification : | Rotart shaft | Material : | S45C/SUS304/SCM435 |

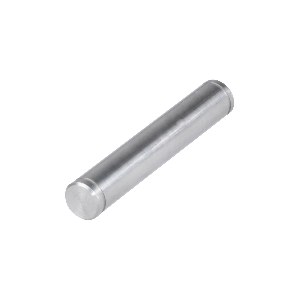

Rotary Shaft Straight Type With stopper groove
| Type : | Staright type | D Tolerance : | H9/g6/H7 |
| Shape Picture Name : | Staright type | Shaft end processed : | Shaft end unprocessed |
| Shaft body processed : | Groove With Retaining Ring | Surface Treatment : | None/Electroless Nickel Plating |
| Classification : | Rotart shaft | Material : | SUS304/S45C/SCM435 |
Rotary Shaft Straight Type With key groove
| Type : | Staright type | D Tolerance : | g6/H7/H9 |
| Shape Picture Name : | Straight Bar Type With key groove | Shaft end processed : | Shaft end unprocessed |
| Shaft body processed : | With Keyway Shape | Surface Treatment : | None/Electroless Nickel Plating |
| Classification : | Rotart shaft | Material : | SUS304/S45C |

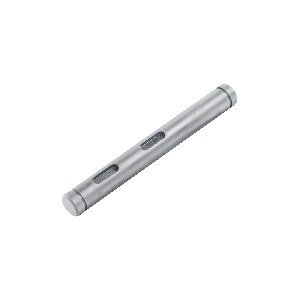

Rotating Shaft Straight Type
| D Tolerance : | H9/g6/H7 | Type : | Staright type |
| Shape Picture Name : | Straight Bar Type With key groove | Shaft end processed : | Shaft end unprocessed |
| Shaft body processed : | Groove With Retaining Ring+Keyway | Surface Treatment : | Electroless Nickel Plating/None |
| Classification : | Rotart shaft | Material : | S45C/SUS304 |

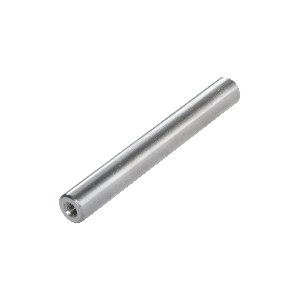

Rotating Shaft Straight Type One End Tapped Standard
| Type : | Staright type | D Tolerance : | H9/g6/H7 |
| Shape Picture Name : | One End Tapped type | Shaft end processed : | One End Tapped type |
| Shaft body processed : | Shaft body unprocessed | Surface Treatment : | Electroless Nickel Plating/None |
| Classification : | Rotart shaft | Material : | SUS304/S45C/SCM435 |

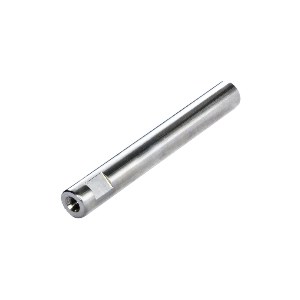

Rotating Shaft Straight Type One End Tapped With wrench Flats
| Type : | Staright type | D Tolerance : | H9/g6/H7 |
| Shape Picture Name : | One End Tapped type | Shaft end processed : | One End Tapped type |
| Shaft body processed : | Groove With Wrench | Surface Treatment : | Electroless Nickel Plating/None |
| Classification : | Rotart shaft | Material : | S45C/SUS304 |

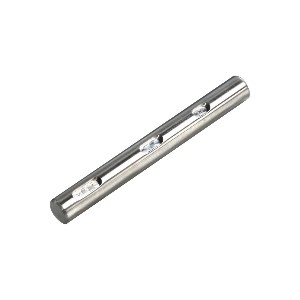

Rotating Shaft Straight Type One End Tapped With Keyway
| Type : | Staright type | D Tolerance : | H9/g6/H7 |
| Shape Picture Name : | Straight Bar Type With key groove | Shaft end processed : | One End Tapped type |
| Shaft body processed : | With Keyway Shape | Surface Treatment : | Electroless Nickel Plating/None |
| Classification : | Rotart shaft | Material : | S45C/SUS304 |

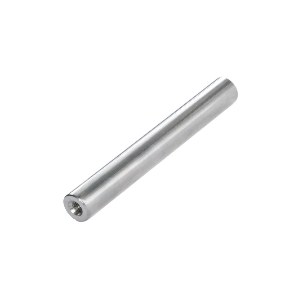

Rotating Shaft Straight Type Both Ends Tapped Standard
| Type : | Staright type | D Tolerance : | H9/g6/H7 |
| Shape Picture Name : | Both End Tapped type | Shaft end processed : | Both End Tapped type |
| Shaft body processed : | Shaft body unprocessed | Surface Treatment : | Electroless Nickel Plating/None |
| Classification : | Rotart shaft | Material : | S45C/SUS304/SCM435 |

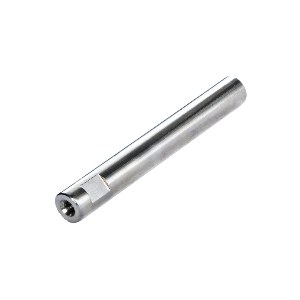

Rotating Shaft Straight Type Both Ends Tapped With wrench Flats
| Type : | Staright type | D Tolerance : | H9/g6/H7 |
| Shape Picture Name : | Both End Tapped type | Shaft end processed : | Both End Tapped type |
| Shaft body processed : | Groove With Wrench | Surface Treatment : | Electroless Nickel Plating/None |
| Classification : | Rotart shaft | Material : | SUS304/S45C |

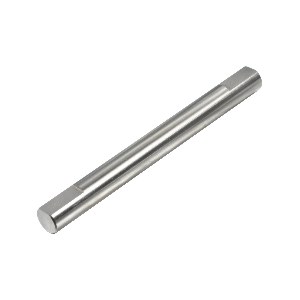

Rotating Shaft Straight Type Tension Type/Stop Type
| Type : | Staright type | Shape Picture Name : | Check The Transformation/Tension Type |
| Shaft end processed : | Check The Transformation/Tension Type | Surface Treatment : | Electroless Nickel Plating/None |
| Classification : | Rotart shaft | Material : | S45C/SUS304 |

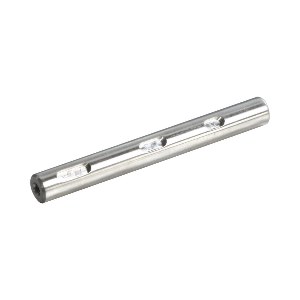

Rotating Shaft Straight Type Both Ends Tapped With Keyway
| Type : | Staright type | D Tolerance : | H9/g6/H7 |
| Shape Picture Name : | Straight Bar Type With key groove | Shaft body processed : | With Keyway Shape |
| Shaft end processed : | Both End Tapped type | Surface Treatment : | Electroless Nickel Plating/None |
| Classification : | Rotart shaft | Material : | S45C/SUS304 |

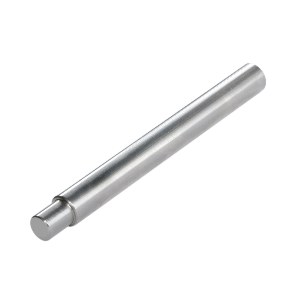

Rotating Shaft Standard Type One End Stepped
| Type : | One End Stepped | D Tolerance : | H9/g6/H7 |
| Shape Picture Name : | One End Stepped | P Tolerance : | g6/H7 |
| Shaft end processed : | Shaft end unprocessed | Shaft body processed : | Shaft body unprocessed |
| Surface Treatment : | Electroless Nickel Plating/None | Classification : | Rotart shaft |
| Material : | S45C/SUS304 |

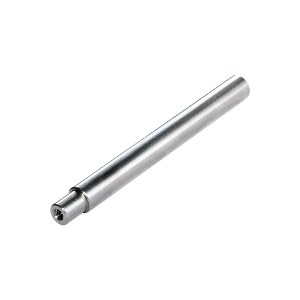

Rotating Shaft One End Stepped One End Tapped Standard
| Type : | One End Stepped | D Tolerance : | H9/g6/H7 |
| Shape Picture Name : | Stepped One End Steppd And Tapped | P Tolerance : | H7/g6 |
| Shaft end processed : | One End Tapped type | Shaft body processed : | Shaft body unprocessed |
| Surface Treatment : | Electroless Nickel Plating/None | Classification : | Rotart shaft |
| Material : | S45C/SUS304 |

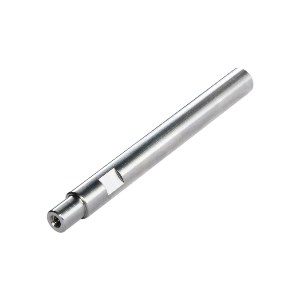

Rotating Shaft One End Stepped One End Tapped With wrench Flats
| D Tolerance : | g6/H7 | Type : | One End Stepped |
| Shape Picture Name : | Stepped One End Steppd And Tapped | P Tolerance : | g6/H7 |
| Shaft body processed : | Groove With Wrench | Shaft end processed : | One End Tapped type |
| Surface Treatment : | Electroless Nickel Plating/None | Classification : | Rotart shaft |
| Material : | S45C |
Rotating Shaft One End Stepped Both Ends Tapped Standard
| Type : | One End Stepped | D Tolerance : | H9/g6/H7 |
| Shape Picture Name : | Stepped One End Stepped Both Ends Tapped | P Tolerance : | g6/H7 |
| Shaft body processed : | Shaft body unprocessed | Shaft end processed : | Both End Tapped type |
| Surface Treatment : | Electroless Nickel Plating/None | Classification : | Rotart shaft |
| Material : | SUS304/S45C |

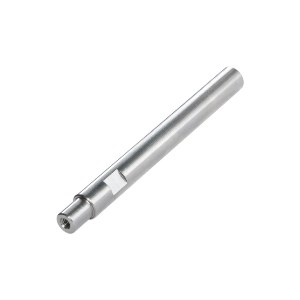

Rotating Shaft One End Stepped Both Ends Tapped With wrench Flats
| D Tolerance : | H9/g6/H7 | Type : | One End Stepped |
| Shape Picture Name : | Stepped One End Stepped Both Ends Tapped | P Tolerance : | H7/g6 |
| Shaft body processed : | Groove With Wrench | Shaft end processed : | Both End Tapped type |
| Surface Treatment : | Electroless Nickel Plating/None | Classification : | Rotart shaft |
| Material : | S45C/SUS304 |

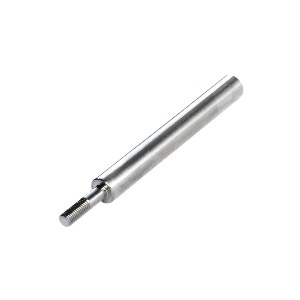

Rotating Shaft One End Stepped One End Threaded One End Tapped Standard
| Type : | One End Stepped | D Tolerance : | H9/g6/H7 |
| Shape Picture Name : | Stepped One End Stepped One End Tapped | P Tolerance : | H7/g6 |
| Shaft end processed : | One End Threaded One End Tapped | Shaft body processed : | Shaft body unprocessed |
| Surface Treatment : | Electroless Nickel Plating/None | Classification : | Rotart shaft |
| Material : | S45C/SUS304 |

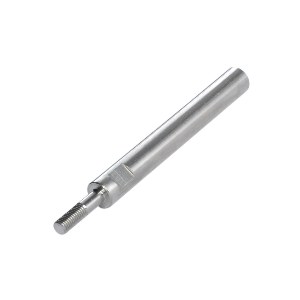

Rotating Shaft One End Stepped One End Threaded One End Tapped With wrench Flats
| Type : | One End Stepped | D Tolerance : | H9/g6/H7 |
| Shape Picture Name : | Stepped One End Stepped One End Tapped | P Tolerance : | H7/g6 |
| Shaft end processed : | One End Threaded One End Tapped | Shaft body processed : | Groove With Wrench |
| Surface Treatment : | Electroless Nickel Plating/None | Classification : | Rotart shaft |
| Material : | S45C/SUS304 |

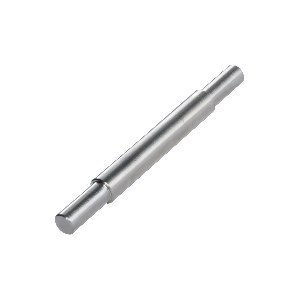

Rotating Shaft Standard Both Ends Stepped
| D Tolerance : | H9/g6/H7 | Type : | Both End Stepped |
| Shape Picture Name : | Stepped Both Ends Stepped | P Tolerance : | g6/H7 |
| Shaft end processed : | Shaft end unprocessed | Shaft body processed : | Shaft body unprocessed |
| Surface Treatment : | Electroless Nickel Plating/None | Classification : | Rotart shaft |
| Material : | S45C/SUS304/SCM435 |
Rotating Shaft Both Ends Stepped With Retaining Ring Groove/Both Ends Tapped Standard
| D Tolerance : | H9/g6/H7 | Type : | Both End Stepped |
| Shape Picture Name : | Stepped Both Ends Stepped And Tapped/Stepped Both Ends Stepped | P Tolerance : | g6/H7 |
| Shaft body processed : | Shaft body unprocessed | Shaft end processed : | Both End Tapped type/With stopper groove |
| Surface Treatment : | Electroless Nickel Plating/None | Classification : | Rotart shaft |
| Material : | S45C/SUS304 |

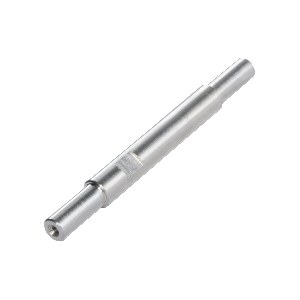

Rotating Shaft Both Ends Stepped And Tapped With wrench Flats
| D Tolerance : | H9/g6/H7 | Type : | Both End Stepped |
| Shape Picture Name : | Stepped Both Ends Stepped And Tapped | P Tolerance : | H7/g6 |
| Shaft end processed : | Both End Tapped type | Shaft body processed : | Groove With Wrench |
| Surface Treatment : | Electroless Nickel Plating/None | Classification : | Rotart shaft |
| Material : | S45C/SUS304 |

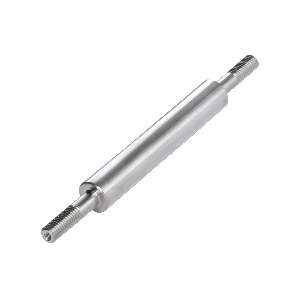

Rotating Shaft Both Ends Stepped And Threaded Standard
| D Tolerance : | H9/g6/H7 | Type : | Both End Stepped |
| Shape Picture Name : | Stepped Both Ends Stepped Both Ends Threaded | P Tolerance : | g6/H7 |
| Shaft body processed : | Shaft body unprocessed | Shaft end processed : | Both Ends Threaded |
| Surface Treatment : | Electroless Nickel Plating/None | Classification : | Rotart shaft |
| Material : | SUS304/S45C |

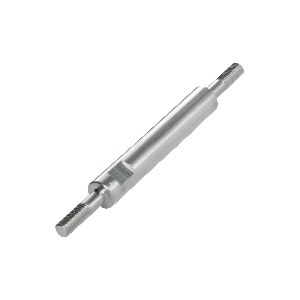

Rotating Shaft Both Ends Stepped And Threaded With wrench Flats
| D Tolerance : | H9/g6/H7 | Type : | Both End Stepped |
| Shape Picture Name : | Stepped Both Ends Stepped Both Ends Threaded | P Tolerance : | H7/g6 |
| Shaft end processed : | Both Ends Threaded | Shaft body processed : | Groove With Wrench |
| Surface Treatment : | Electroless Nickel Plating/None | Classification : | Rotart shaft |
| Material : | S45C/SUS304 |
